Friday, 6 June 2008

Alignment Fixed

I knew that my excursion over the grass at Forrestburn had knocked my carefully developed alignment settings out but until today, I hadn't realised by how much!

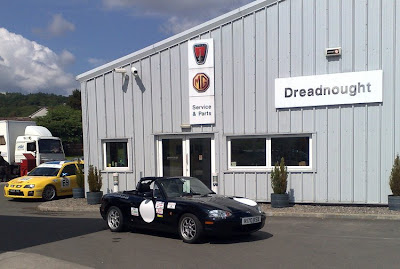

I took the car back to good old Claire and Paul at Dreadnought in Callander to have the alignment re-set. Turns out that I had 1.2mm of toe OUT at the rear right. This might explain some of the twitchiness under braking I've experienced of late.

Since I'm now mainly running standard road tyres (Toyo T1-R) as opposed to the stickier Toyo R888s and I'm back on looser anti-roll bars, I've toned down the camber settings a wee bit. Settings now are:
Front axle
Caster = 5 degrees
Camber = -1.2 degrees
Toe = 0.3mm IN per side
Rear Axle
Camber = -1.8 degrees
Toe = 0.6mm IN per side

On the drive back, the car felt very nicely planted with no adverse behaviour. The clunking appears to have subsided as well so I wonder if one of the alignment bolts was a wee bit loose before. I had thought it was the drop-links so I have ordered a new set from Steve Heath which should be here for fitting before Barbon next weekend.
